Tree Roots And Root Barricades

View a Root Barricade Installation Below

Back-Filling the Trench during a foundation repair job in Plano Texas
Workers continue to back-fill the trench with dirt - Foundation Repair in Plano, Texas
Grass is replaced to finish the job - Foundation Repair in Plano
The Trench has been filled with dirt - Plano Foundation Repair
The Root Barricade in the Trench - Foundation Repair in Plano Texas
The soil back fill process begins for the root barricade - Plano Foundation Repair
Polyethylene vinyl Root Barricade - 36 inches deep - Dawson Foundation Repair
The Completed Trench - Dawson Foundation Repair
Water sprinkler line - Dawson Foundation Repair
Several roots leading under the foundation had to be cut - Dawson Foundation Repair
A large root reaching under the foundation was cut - Dawson Foundation Repair
Digging the Trench - Dawson Foundation Repair
Clearing the area where the trench will be dug for the root barriers / barricades - Foundation Repair in Plano
Marking the path of the trench for the root barricade - Plano Foundation Repair
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
Foundation Repair Plano TX (214) 234-8421
previous arrowprevious arrow
next arrownext arrow

There are many causes for concrete slab foundation problems including outside drainage problems, moisture fluctuations in the underlying clay soils, tree roots, and plumbing and sewer line leaks. However, in our experience, one of the biggest single causes is differential settlement due to large trees. When they extract large amounts of water from the clay soils the clay soils will shrink in volume – sometimes dramatically. Large trees like Oak, Arizona Ash and Chinese Tallow have extensive tap root systems that extract large amounts of water from the soil, which can cause major damage and require home foundation repair. The simplest and easiest way to combat this water withdrawal is with root barricades.

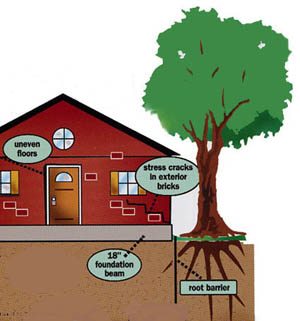

tree roots can cause foundation problemsThese large trees remove disproportionate amounts of moisture from soils under and adjacent to foundations. That is, a large tree on one side of your house will cause your home foundation to settle in the area the tree is located. That side will tend to settle due to moisture loss while the other sides of the house do not. The result is that the soil in this area will shrink (due to moisture loss) and separate from the bottom of the foundation. This area of shrinkage creates a void and when the area of the void becomes too large the concrete foundation will collapse to find its support, causing one or more cracks in the home foundation.

If a tree is very close to your home then the solution is to remove the tree to avoid a home foundation repair job. If the tree is further away from the home foundation (20 to 30 feet), we can install root barricades three to five feet from the exterior walls of your home. The root barricade will prevent tree roots from removing moisture from the soil that is in the immediate vicinity of the home’s foundation.

Installation of root barricades requires trenching and installing polyethylene sheets to a depth of 36″ inches. This will prevent tree roots from growing past the root barricade.

In our opinion, root barricades can be helpful in preventing interior settlement problems, but will be limited in preventing exterior settlement. That is, they can help prevent the need for interior piers but not exterior piers if the tree is close to the house.

Much of our barricade installation is done by our sister company, Dawson Root Barriers. Please visit the website for more information.

More helpful information can be found at FREE foundation maintenance tips.
